iCloud location tracking, presence management and actions on your Apple devices.

Jeedom 4.4+stableos 11+php 7.4/8.xpython☕ Soutenir le développement

This document describes the iOSCloud plugin: configuration, authentication, devices, presence and scenarios.

Quick access:

Overview

The iOSCloud plugin allows Jeedom to connect to your iCloud account in order to:

  • retrieve the location of your Apple devices (iPhone, iPad…)
  • automatically calculate presence (home / away)
  • trigger actions such as playing a sound on a device or sending a message

Goal: easily automate your presence and Apple devices in Jeedom.

Prerequisites

Minimum requirements​

  • Jeedom 4.4 minimum
  • Debian 11 minimum (Debian 11 recommended)
  • PHP 7.4 minimum
  • An Apple iCloud account
  • A trusted Apple device (to receive the security code)

Installation

1️⃣ Install the plugin​

  1. Jeedom → Plugins
  2. Market
  3. Search for iOSCloud
  4. Install then activate

2️⃣ Install dependencies​

On the plugin page:

Click (Re)install dependencies

The plugin uses an internal Python module to communicate with iCloud. Jeedom automatically installs what is needed.

Wait until the status changes to OK.

Complete authentication procedure (IMPORTANT)

Connecting to iCloud requires two-factor authentication (2FA).

Apple sends a temporary security code to your Apple devices.

Step 1 — Configure the iCloud account​

Create a device of type iCloud Account (cloud).

In its configuration:

  • iCloud address (Apple email)
  • iCloud password

Save.

Step 2 — Start authentication​

In the device:

Click Authentication

The plugin attempts to connect.

Step 3 — Receive the Apple code​

If Apple requests a code:

  • You receive a code on your iPhone / iPad
  • A "code" field appears in the plugin

Enter the received code.

Click Send code

Step 4 — Validation​

The plugin displays the progress:

  • Connecting
  • Code requested
  • Code sent
  • Code validated
  • Synchronizing devices

When validation is complete:

✅ Devices are automatically retrieved ✅ "Device" equipment is created or updated

Re-authentication​

  • After a reboot
  • If the password is incorrect → connection refused

Avoid running authentication too frequently.

Device types

The plugin creates several device types:

☁️ iCloud Account (cloud)​

Main device.

Contains:

  • iCloud credentials
  • Authentication button

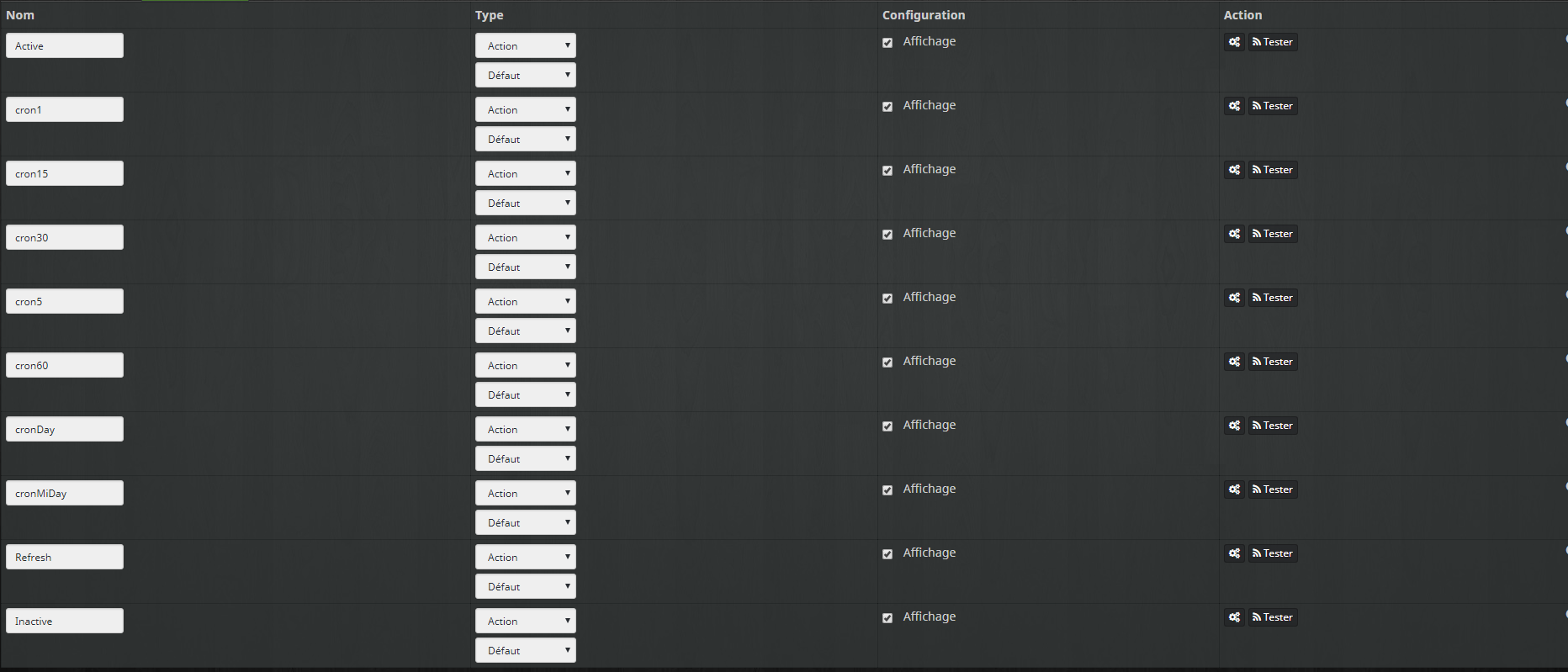

  • Refresh management
  • Cron settings

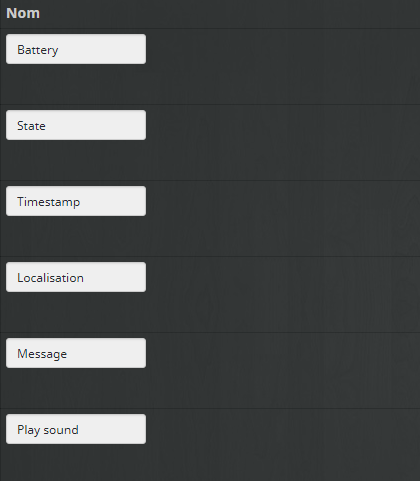

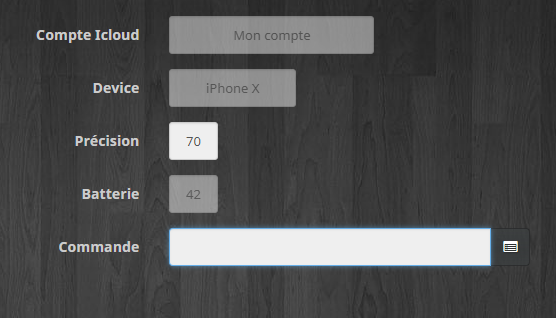

📱 iCloud Device (devices)​

One device per Apple device.

Available commands:

  • Location
  • Battery
  • Timestamp
  • State
  • Play sound
  • Message

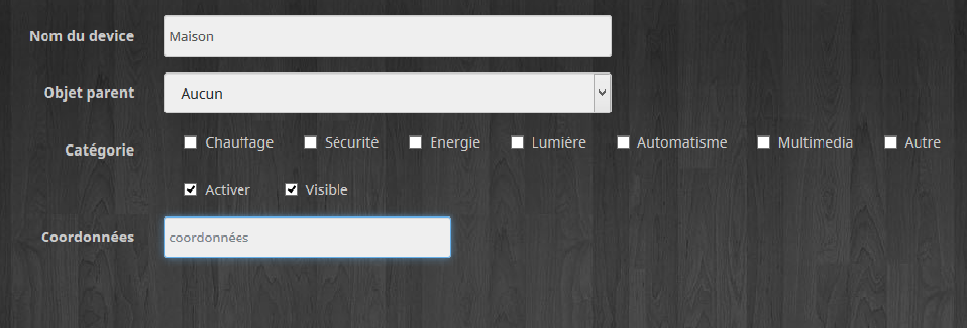

📍 Fixed position (fixed)​

Lets you define a manual GPS point (e.g. Home).

Required format:

latitude,longitude

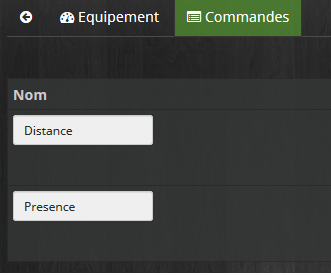

📏 Distance / Presence (geofence_dist)​

Calculates:

  • Distance between a fixed point and a device
  • Presence (0 or 1) based on a defined radius

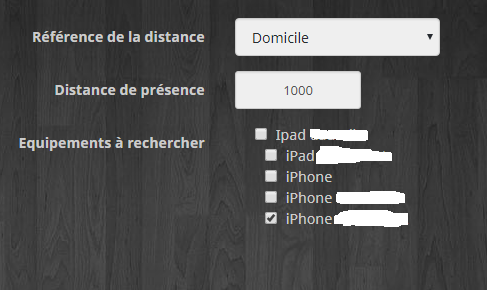

Settings:

  • Reference position
  • Radius (e.g. 300 meters)
  • Monitored devices

Important settings

Refresh rate​

Do not set a frequency that is too short. Recommended: every 5 minutes.

State delay​

Time before the state returns to 0 if no update is received. Default: 1 hour.

Presence radius​

  • 100 m → very strict
  • 300 m → good compromise
  • 500 m → more stable

Using in scenarios

Example — Arriving home​

Condition:

#[iOSCloud][Home - Presence][Presence]# == 1

Possible actions:

  • Turn on lights
  • Deactivate alarm
  • Send notification

Example — Leaving home​

#[iOSCloud][Home - Presence][Presence]# == 0

Play a sound on an iPhone​

#[iOSCloud][iPhone][Play sound]#

Send a message​

#[iOSCloud][iPhone][Message]#

Practical tips

  1. Do not refresh too frequently
  2. Adjust the radius if presence varies too much
  3. Re-run authentication if Apple requests a new code
  4. To avoid false departures, create a scenario:
    • Presence = 0
    • For more than X minutes → Activate away mode
