🔄 Perform a synchronization after the update
- Ensures proper device detection
- Recreates commands based on the actual type (API / BLE)
-
🔵 MAC addresses are automatically migrated
📡 Bluetooth range
Bluetooth range depends on distance, walls and radio interference. An external Bluetooth antenna can improve reception if your devices are far from your Jeedom box.
🔵 Conflict with other Bluetooth plugins
If you use other plugins that use Bluetooth (such as BLEA), conflicts may occur during a scan. It is recommended to temporarily stop the daemon of these plugins during the scan, then restart it afterward.
🔁 State synchronization from the SwitchBot app
If you operate a device directly from the SwitchBot app (not from Jeedom), the state in Jeedom will be updated at the next automatic refresh (every 5 minutes in API mode).
Overview
The SwitchBot plugin integrates SwitchBot devices into Jeedom. It lets you control your switches, curtains, locks, temperature sensors, motion detectors, bulbs and smart plugs directly from your home automation system.
It works in three different ways depending on your setup:
- ☁️ Cloud API — via the Internet with a SwitchBot Hub
- 📡 Local Bluetooth — directly from your Jeedom box, without a Hub
- 🔄 Auto mode — both combined to get the best of each device
Supported devices
| Device | Cloud API | Bluetooth |
|---|---|---|
| Bot (physical switch) | ✅ | ✅ |
| Curtain | ✅ | ✅ |
| Curtain 3 | ✅ | ✅ |
| Lock | ✅ | ✅ |
| Meter (thermometer + hygrometer) | ✅ | ✅ |
| Meter Plus | ✅ | ✅ |
| Outdoor Meter | ✅ | ✅ |
| Meter Pro CO2 | ✅ | — |
| Motion Sensor | ✅ | ✅ |
| Contact Sensor (door/window) | ✅ | ✅ |
| Presence Sensor | ✅ | — |
| Water Leak Detector | ✅ | — |
| Color Bulb | ✅ | ✅ |
| LED Strip Light | ✅ | ✅ |
| Plug Mini EU (smart plug) | ✅ | ✅ |
| Humidifier | ✅ | — |
Prerequisites
For Cloud API mode:
- A SwitchBot Hub (Hub Mini, Hub 2 or Hub Plus) connected to your Wi-Fi network
- A SwitchBot account with a Token and Secret (obtained from the official app)
For Bluetooth mode:
- A Jeedom box with a Bluetooth adapter (built-in or USB Bluetooth dongle)
- SwitchBot devices within Bluetooth range of the box (approximately 10 meters depending on obstacles)
- Plugin dependencies installed (button available on the plugin management page)
Installation
- Install the plugin from the Jeedom Market
- Activate the plugin
- Go to Plugins → Plugin Management → SwitchBot → Configuration
- Click Install dependencies and wait for completion (a few minutes)
- Choose your operating mode then follow the corresponding configuration below
The three operating modes
Cloud API mode ☁️
The plugin communicates with your devices via the Internet, through the SwitchBot servers. Your devices must be paired with a SwitchBot Hub.
✔ Advantages
- Compatible with all devices (including those without direct Bluetooth)
- No conflict with other Bluetooth plugins
- Stable and reliable
✘ Disadvantages
- Requires a SwitchBot Hub and an Internet connection
- State updates occur every 5 minutes (not real-time)
Local Bluetooth mode 📡
The plugin communicates directly with your devices via Bluetooth, without going through the Internet. Ideal without a SwitchBot Hub or for a 100% local setup.
✔ Advantages
- Works without Internet, without a Hub, without a SwitchBot account
- Sensors send their data in real-time (as soon as a value changes)
- Total privacy, nothing leaves your network
✘ Disadvantages
- Devices within Bluetooth range only
- Risk of conflict if other plugins use Bluetooth at the same time
Auto mode (combined) 🔄
The plugin uses both methods simultaneously, depending on what is most suitable.
In Auto mode, the plugin intelligently leverages both channels:
Sensors (temperature, humidity, motion, door opening…) use real-time Bluetooth: as soon as a device detects a change, the information reaches Jeedom in less than a second, automatically.
Commands (turn on, turn off, open/close curtains, lock…) go through the Internet API if a Hub is available, or directly via Bluetooth if the device is within range.
State updates are also performed every 5 minutes via the API, complementing the instant Bluetooth notifications.
In practice: your temperature sensor transmits its value as soon as it changes, your Bot switch responds immediately to a command — without any special configuration needed. You get the best of both methods.
Cloud API configuration
To use the SwitchBot API, you need a Token and a Secret from your SwitchBot account.
Obtain API keys from the SwitchBot app
- Open the SwitchBot app on your phone
- Go to Profile (icon at the bottom right)
- Tap Preferences
- Scroll to the bottom and tap 10 times quickly on "App Version"
- A new Developer Options section appears
- Copy the Token and Secret
Enter keys in Jeedom
- In the plugin configuration, paste your Token in the dedicated field
- Paste your Secret
- Click Save Token / Secret
API keys are linked to your SwitchBot account. If you change your password or revoke the keys from the app, remember to update the configuration in Jeedom.

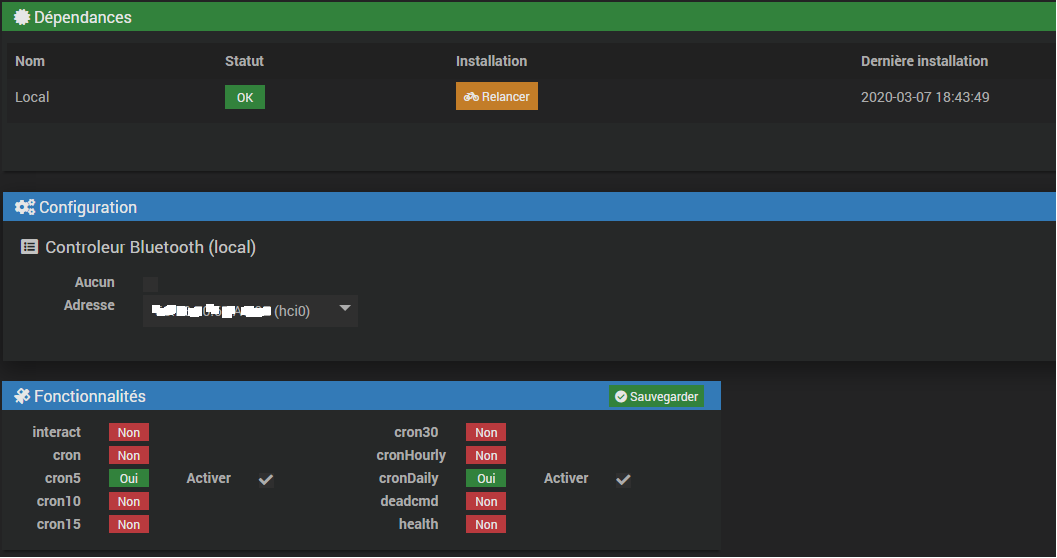

Bluetooth configuration
- Select the Local BLE Bluetooth (or Auto) mode in the configuration
- Choose your Bluetooth adapter from the list (usually
hci0) - Adjust the scan duration if needed (10 seconds by default)
Synchronization and device setup
From the Cloud API
After configuring your API credentials, click Synchronize API devices. All your devices paired with the SwitchBot Hub appear automatically in Jeedom with their commands ready to use.
From Bluetooth
Click Scan BLE devices. The scan takes about 10 seconds. All SwitchBot devices detected within range are created automatically.
If your device is not detected, move it closer to your Jeedom box or make sure it is in active mode (press the physical button on the device once to "wake it up").

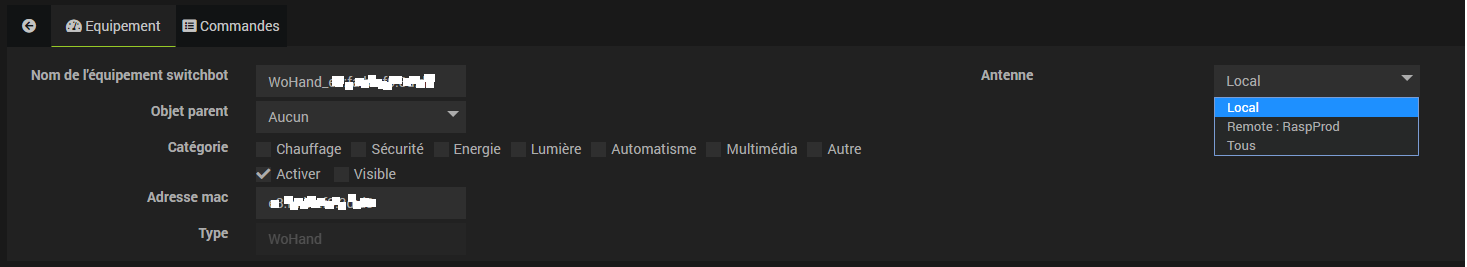

Manually
From Plugins → Connected Objects → SwitchBot, click Add. Enter the device type and its identifier (visible in the SwitchBot app or in a scan result).

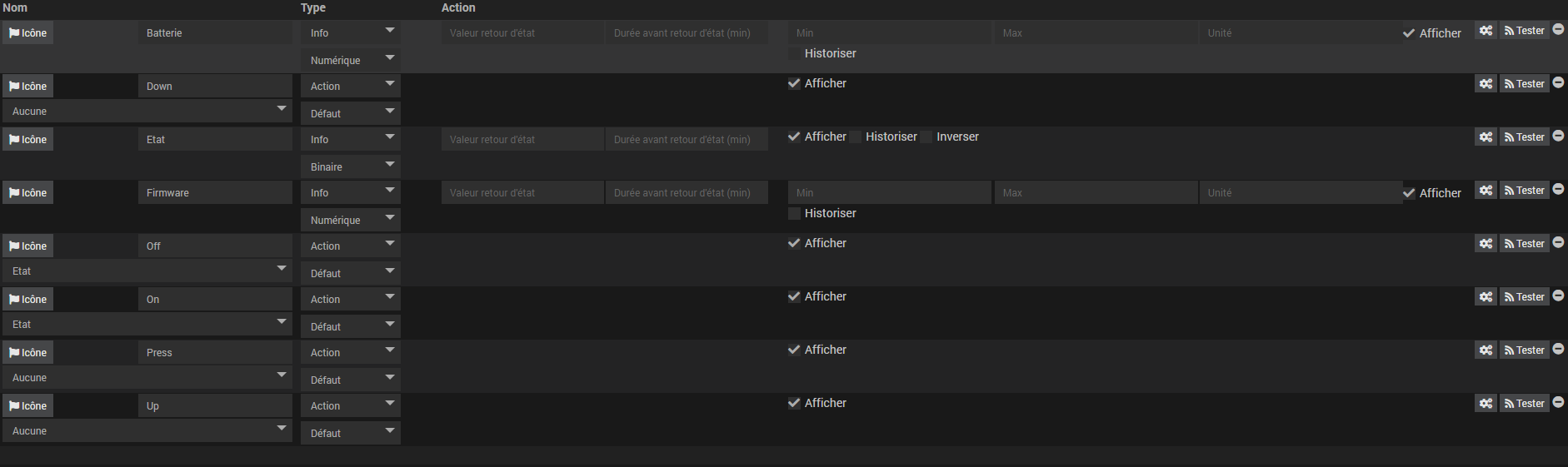

Available commands
Commands are created automatically based on the device type. Here are the most common ones:
| Command | Type | Description |
|---|---|---|
| Refresh | Action | Forces a device state update |
| State | Info | On (1) or off (0) |
| On | Action | Turns on / activates the device |
| Off | Action | Turns off / deactivates the device |
| Temperature | Info | Temperature in °C |
| Humidity | Info | Humidity in % |
| Battery | Info | Battery level in % |
| Brightness | Info | Current brightness level (%) |
| Set brightness | Action | Sets brightness (1–100) |
| Color | Info | Current color (HEX format #RRGGBB) |
| Set color | Action | Sets the color (RGB / HEX) |
| Color temperature | Info | Current temperature (Kelvin) |
| Set temperature | Action | Sets the color temperature |
| Color mode | Info | Active mode (color or white) |
| Effect | Info | Active light effect |
| Set effect | Action | Activates a preset effect |
| Position | Info | Curtain position (0 = open, 100 = closed) |
| Go to position | Action | Moves the curtain to the desired position (0–100) |
| Motion detected | Info | Motion in progress (1) or not (0) |
| Opening | Info | Door open or closed |
| Lock | Action | Locks the smart lock |
| Unlock | Action | Unlocks the smart lock |
The Bluetooth daemon
In Bluetooth or Auto mode, the plugin launches a background service (the daemon) that continuously listens for Bluetooth signals from your SwitchBot devices.
You don't need to do anything. The plugin:
- Starts the daemon automatically when Jeedom launches
- Monitors it continuously and restarts it if needed
- Stops it cleanly when you change modes or deactivate the plugin
When to restart the daemon manually?
Only if your Bluetooth devices stop responding or no longer update. In that case:
- Go to Plugins → Plugin Management → SwitchBot
- Click Restart daemon in the plugin banner
If the daemon fails to start, check:
- That dependencies are properly installed
- That your Bluetooth adapter is recognized by the system (visible on the Health page)
- That no other Bluetooth plugin is monopolizing the adapter at the same time
Health page
The Health page provides an at-a-glance overview of your entire setup:
- API connection — Token and Secret valid and functional (actual connection test)
- Python — engine required for Bluetooth present and operational
- Daemon — active or stopped
Access: from the SwitchBot device list, click the Health icon at the top of the page.
Using in Jeedom

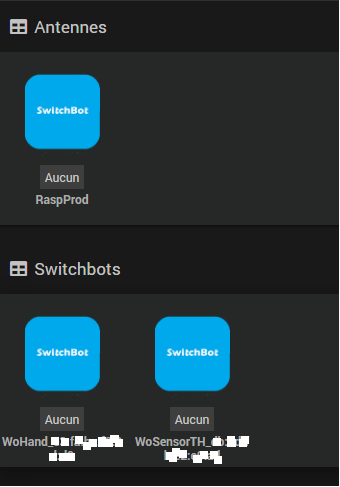

Once devices are created, they appear in Plugins → Connected Objects → SwitchBot.
Their commands can be used directly in:
- Jeedom scenarios
- dashboard widgets
- voice interactions
- alerts and notifications
Commands are automatically generated from the device profiles built into the plugin — no manual command configuration is needed.
Troubleshooting
Bluetooth scan finds no devices
- Check that your Bluetooth adapter is properly selected in the configuration
- Move your SwitchBot devices closer to the Jeedom box during the scan
- Press the physical button on the device once to make it visible
- If another plugin uses Bluetooth (BLEA, etc.), stop its daemon during the scan
- Check the daemon and dependency status on the Health page
The API is not working
- Check that your Token and Secret are correct and up to date
- Use the Health page to test the connection in real-time
- Check your Internet connection and the status of your SwitchBot Hub in the official app
- If you recently changed your SwitchBot password, regenerate your keys in the app
Sensor values are no longer updating
- In Bluetooth mode: restart the daemon from the plugin management page
- In API mode: check the status of your SwitchBot Hub and your Internet connection
- Check the plugin logs (Analysis → Logs → switchbot) to identify any errors
The "Go to position" command does not send the correct value
- Check that the command is of Slider type in the device configuration
- The value must be a number between 0 (open) and 100 (closed)
- If the value is empty or missing, the plugin now reports an explicit error in the logs
The state in Jeedom does not match the actual device state
- In API mode, the state is automatically refreshed every 5 minutes. Click Refresh for an immediate update
- In Bluetooth mode, the daemon updates the state as soon as the device sends a signal. If nothing happens, restart the daemon
